VTISKOVALEC M DIN371 6HX TIN HSSE FORMAT
Item
FF1780
Že od
26,10 €
Jeklo <700 N / mmɸ
10
Jeklo <1000 N / mmɸ
8
Jeklo <1400 N / mmɸ
6
INOX ferit / martenzit
12
INOX avstenitni
10
INOX dupleks
8
Nodularna litina GGG
23
Titan> 850 N / mmɸ
6
Alu < 8% Si
45
Alu > 8% Si
35
Machine tap

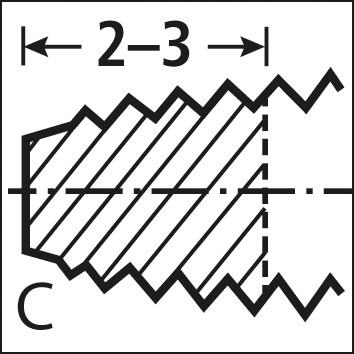

Design: With feed length form C (2–3 threads).
M3–M10 DIN 371 with reinforced shank,
M12–M16 DIN 376 with overflow shank.
Application: For regular metric threads according to DIN 13. Particularly suitable for all forming materials such as construction steels, machining steels, case-hardening steels, cold work steels, hot work steels, nitriding steels and stainless steels, aluminium, al-alloys, copper, Cu-alloys, brass and bronzes.
Note: Tolerance range ISO 3/6G and 6HX with excess for workpieces that tend to spring back when machining, are coated or easily shrink when hardening.
Design: With feed length form C (2–3 threads).
M3–M10 DIN 371 with reinforced shank,
M12–M16 DIN 376 with overflow shank.
Application: For regular metric threads according to DIN 13. Particularly suitable for all forming materials such as construction steels, machining steels, case-hardening steels, cold work steels, hot work steels, nitriding steels and stainless steels, aluminium, al-alloys, copper, Cu-alloys, brass and bronzes.
Note: Tolerance range ISO 3/6G and 6HX with excess for workpieces that tend to spring back when machining, are coated or easily shrink when hardening.
