SVEDER HM 5XD DIN6535-HA FIRE S HLAJ.GÜHRING
Item
FF1218
Že od
70,40 €
Povezani izdelki
Jeklo <700 N / mmɸ
130
Jeklo <1000 N / mmɸ
120
Jeklo <1400 N / mmɸ
105
INOX ferit / martenzit
60
INOX avstenitni
55
INOX dupleks
45
Siva litina GG / GTS
160
Nodularna litina GGG
128
Titan> 850 N / mmɸ
45
Alu < 8% Si
260
Alu > 8% Si
220
Baker Cu-zlitine
325
Kaljeno jeklo <55 HRC
55
GÜHRING no_selection

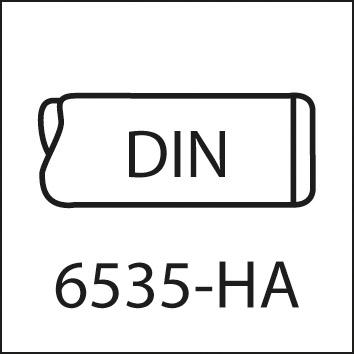

Solid carbide jobber drill, SuperLine, 5 x D, shank according to DIN 6535-HA, with internal cooling

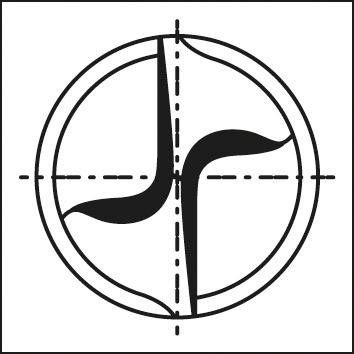

Design: Right cutting, with special grinding. The drill has a very good self-centring behaviour and produces short chips, even from long-chipping materials.
Application: Versatile jobber drill for accurate holes with narrow Ø tolerances and good surfaces. Suitable for drilling holes up to 5 x D with high cutting values. Particularly suitable for long and short-chipping materials such as construction and case-hardening steels, steel castings, tempered steels, carbon steels, bronzes, castings, high alloy AlSi alloys and alloy steels up to 1200 N/mm² in strength.

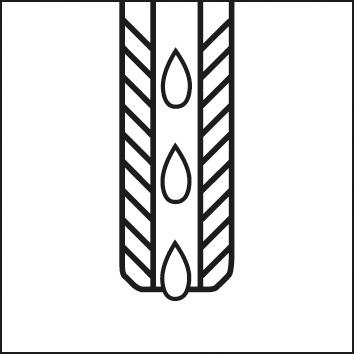

With twisted internal cooling through the bar. Twisted internal cooling. The coolant directly accesses the blades and flushes the chips out of the hole.
Design: Right cutting, with special grinding. The drill has a very good self-centring behaviour and produces short chips, even from long-chipping materials.
Application: Versatile jobber drill for accurate holes with narrow Ø tolerances and good surfaces. Suitable for drilling holes up to 5 x D with high cutting values. Particularly suitable for long and short-chipping materials such as construction and case-hardening steels, steel castings, tempered steels, carbon steels, bronzes, castings, high alloy AlSi alloys and alloy steels up to 1200 N/mm² in strength.
With twisted internal cooling through the bar. Twisted internal cooling. The coolant directly accesses the blades and flushes the chips out of the hole.
