MIKROMETER ZUNANJI ANALOGNI V-NAKOVALO FORMAT
Item
FF4125
Outside micrometer, Micrometer
Že od
249,00 €
| Branje | 0,01 mm |
|---|---|
| Vreteno ɸ | 6,5 mm |
| Boben ɸ | 17,0 mm |
Outside V-anvil micrometer

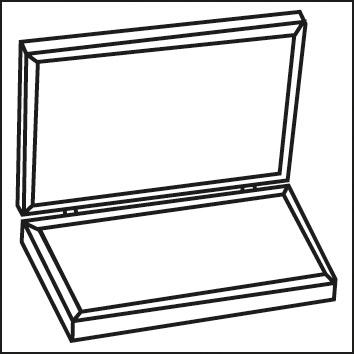

Design: Reading parts matt chrome-plated, hardened and ground spindle, lapped plane parallel measuring faces, measuring force regulation by means of ratchet stop, with hand thermal insulation, with clamping device and adjustment nut. The spindle pitch is adapted to the respective prism angle. Supplied with adjustment key, in a case.
Application: For measuring 3-blade (prism angle 60°) and 5-blade (prism angle 108°) tools such as milling cutters, reamers, etc.
Design: Reading parts matt chrome-plated, hardened and ground spindle, lapped plane parallel measuring faces, measuring force regulation by means of ratchet stop, with hand thermal insulation, with clamping device and adjustment nut. The spindle pitch is adapted to the respective prism angle. Supplied with adjustment key, in a case.
Application: For measuring 3-blade (prism angle 60°) and 5-blade (prism angle 108°) tools such as milling cutters, reamers, etc.
